CNCTOPBAOS 3 Axis 4540 CNC Router with Aluminum Table,500W Spindle,Mini Milling Machine Carving Engraving Cutting Metal Wood Stainless Steel Acrylic Plastic w/Offline Controller/Limit Switch/E-stop

Product description

Package include:

1x 4540 cnc router engraving milling machine (Aluminum table)1 x GRBL White Offline controller6 x Limit Switches1x 500W DC spindle1x Z Axis Probe tool1x Control box with control board,power supply and Estop1 x 10Pcs Engraving bits1 x 2G U disk with GRBL softwareOther installation tools/screws/T nuts/cables1 x English User Manual

Features

Equipped with limit switches/emergency stop/tool setting

The control board is equipped with a limit switch device, which can effectively prevent engraving faults caused by exceeding the engraving range during engraving machine operation;Add the function of emergency stop button,this function can be used when an emergency stop is required at work, making our work safer and more efficient;The tool setting device is mainly composed of a tool setting block and a feeler gauge to determine the relative position of the clamp to the cutter.High precision,accurate tool setting and high accuracy of output signal position;Alligator clips are smooth and flat,clamped on the spindle cutter head,and the clamping force is read well.

Product Size 650 x 532 x 320mm (25.59 x 20.94 x 12.60 inches) Engraving Range 430 x 390 x 90 mm (16.9 x 15.4 x 3.54 inches) Machine Weight about 15.8kg / 33.6 pounds Control Software GRBL Control / Candle Compatible Systems Windows XP / 7 / 8 / 10 DC Power Supply DC 48V,10.4A (Input 110VAC or 220VAC) Accuracy 0.01mm Stepper Motor Nema17 Stepper Motor 48mm Control Method Computer or Offline Controller (Option) Limit Switches Included X,Y, Z limit switches (both ends) Emergency Stop Switch Included Z Axis Probe Included Engraving Objects Stainless steel,Wood, MDF, Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Resin, Ceramic products, Food, Bamboo, Plastic, Nylon, Plywood, Brass, Plexiglass, Aluminum and so on. Max.Movement Speed 5000mm/min 500W DC Spindle 500W Power; Load Speed 0-11000rpm/min Offline controller With white offline controller

Wide applications

Can engrave on Stainless steel,Wood, MDF, Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Resin, Ceramic products, Food, Bamboo, Plastic, Nylon, Plywood, Brass, Plexiglass, Aluminum and so on.If you change the spindle to a 5.5W-40W module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.

This machine can both engraving and cutting.

It can cut 8mm wood products at one time,more easy to create DIY handmade.The recommended thickness for each layer of wood is 1mm, and the feed speed is 300mm/minCutting 8-12mm MDF (Wooden Class) ; Feed rate: 300mm/min;Cutting rate: 100mm/minCutting the 2-3mm Acrylic: (Acrylic Type); Feed rate: 200mm/min;Cutting rate: 80mm/min

This machine can also carve metal, and the depth and feeding speed required for each pass need to be adjusted according to different metal types,the lower the speed, the more stable the work will be.

The recommended depth for each pass of stainless steel is 0.1mm, and the feed rate is 120mm/minRecommended cutting depth for aluminum and brass is ≤ 0.5mm, and feed speed is ≤ 300mm/minCutting 1-5mm Aluminum Plate: (Metal Type) ; Feed rate: 250mm/min;Cutting rate: 100mm/min

Attention:

Due to the huge friction between the milling cutter and the metal, the temperature of the metal will be very high. Therefore, please constantly add lubricating oil during the carving process.

GRBL Software:

Our parcel include a 2G USB flash drive,you can download the english user manual and GRBL software from the flash drive.File formats supported by the software: *.nc, *.ncc, *.ngc, *.tap, *.cnc.Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.

Advantages

Used drag chain wiring,most models on the market are equipped with suspension cables that are prone to collisions.This design is necessary to ensure stable operation.All aluminum table,reliable structure,simple maintenance,good flatness,making the cutting surface smoother,greatly improving stability,firmer and more durable.Adopting a dual Y-axis design for faster speed and higher efficiency, this design can provide greater power and more stable operationThe design of the all aluminum Z-axis ensures that the machine does not shake during carving and is stable throughout the entire processWith GRBL offline controller,support SD card and TF card at the same time, standard capacity 1G; with this offline controller, you can directly control the CNC router without connecting it to your computer.After inserting the file into the SD card,the engraving file can be directly identified. You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file directly.Manually control: manually adjust X,Y,Z axis location as engraving starting point,manually open or close spindle,manully open or close cooling fanFile engraving: after off-line controller save file, it can connect the GRBL control board and process engraving,no need to connect PC computer;Save file: after the off-line controller connect PC,it will be recognized as USB,large capacity storage device, can access engraving file directly.

Integrated controller box Integrated driver chipGRBL control boardfixed heat sinkadjustable power supplySturdy shell emergency stop button

Extend the service life of the control board. Equipped with short circuit protection, it is not easily damaged.

GRBL Control Board Connection: USB (USB-CH340)Support software: GRBL controller(Candle)Supporting file:G-code (.nc/.txt/.tape/.gcode)Add emergency stop button port,tool probe port and XYZ limit portPower supply:48VDCThe spindle supports 0-100% adjustable PWM power.Support PWM / TTL signal control, power 0-100% adjustable.Increase the power button switch.Support 3-pins module: support 0.5W-40W module.Add the fan port to force heat dissipation.

500W Spindle&Manual knob 500W Spindle: Load Speed 0-11000rpm/minMax.Movement Speed: 5000mm/minThe design of the lifting device allows for an adjustable range of up and down travel of 0-80mm (0-3.14 “),making it easy to operate and easier to carve

With white GRBL offline controller

Main Page

Ctrl: Machine Control; File: Use the Gcode file; Press [Y+] [Y-] to select; Press[Ok] to Enter

Control Page

X± Y± Z±: Moving AxisOK/Spindle: Spindle ON/OFFExit/Step: Change Step/Exit (long press)How to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Z+ button simultaneously to increase the speed.How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed.

File Page

Common supported formats include nc. tex. tap.Press [Y+] [Y-] to select filePress [Ok] to EnterPress [Ok] to begin if you are readyNote:Long press [Exit] to stop machining

High Speed 500W Spindle: The 4540 cnc engraving machine is equipped with 500W 48V 11000rpm spindle with ER11 collet,which is more powerful and efficient,and can do a variety of drilling and carving operations on various materials such as big wood,can cut stainless steel,aluminum and other metals;Max.Movement Speed:5000 mm/min;Speed range:0-11000 rpm

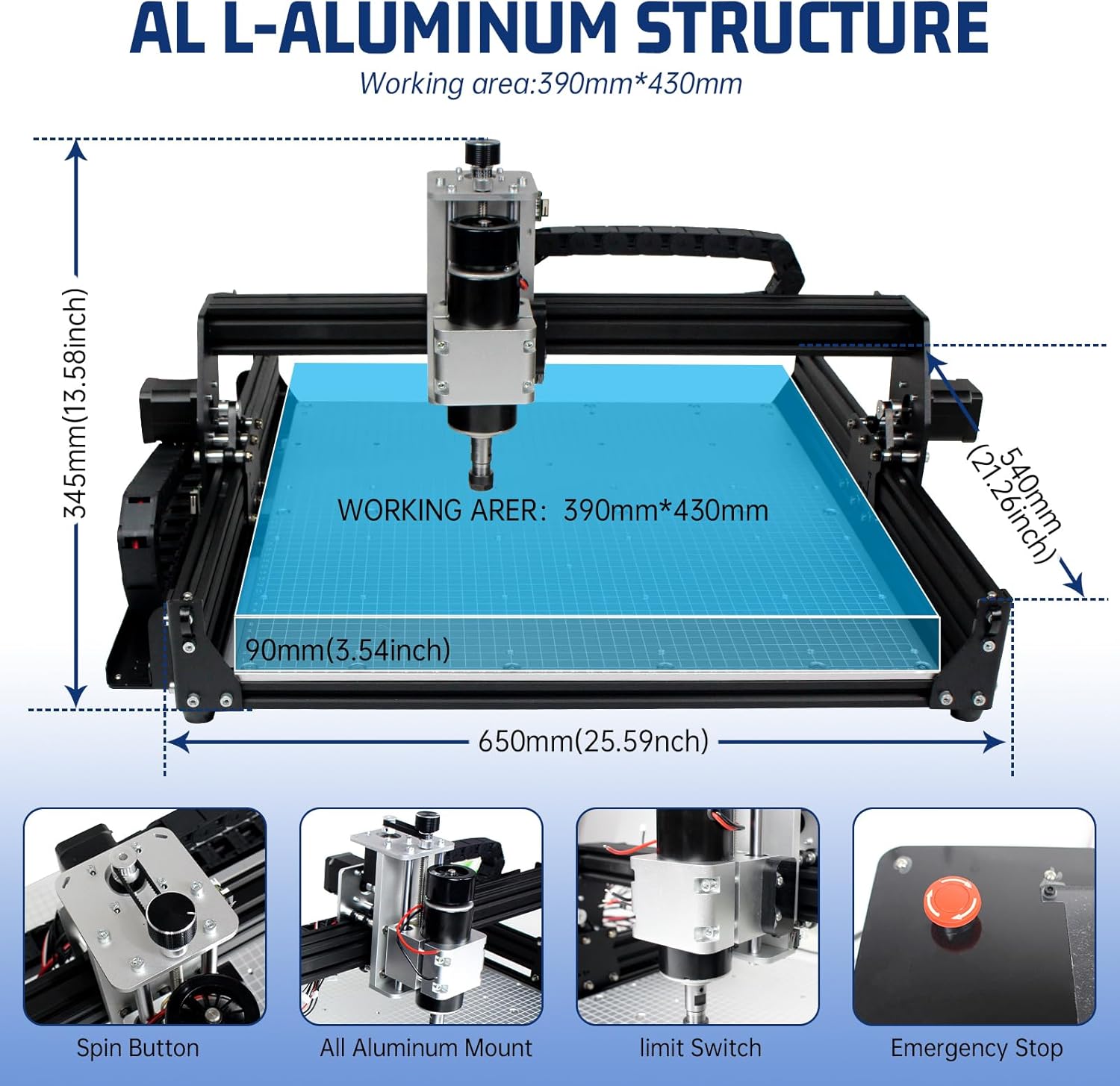

Table type: Aluminum working table;Working area:430x390x90mm/16.93×15.39×3.54 inch;Overall Size:650x532x320mm/25.59×20.94×12.60 inch;The worktable has an accurate scale line,which is convenient to locate and measure the size of the engraving material
White offline controller: Support SD card and TF card at the same time,standard capacity 1G.With this offline controller module, you can directly control the CNC router without connecting it to your computer. After inserting the file into the SD card,the engraving file can be directly identified. You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file directly
Supported Software: This machine is compatible with GRBL software/Candle and supports Windows XP/7/8/10/11; The GRBL Control Software in our package supports Nc, Ncc, Ngc, Tag and other G files; Easy to Assemble: The main components has been pre-assembled and can be simply assembled in 15-30 minutes
Wide Application: Can engrave on Stainless steel, Wood, MDF, Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Resin, Ceramic products, Food, Plastic, Nylon, Plywood, Brass, Plexiglass, Aluminum and so on.This machine can both carve and cut.It can cut 8-12mm/0.31-0.47″ MDF and 5mm/0.19″ thick aluminum
